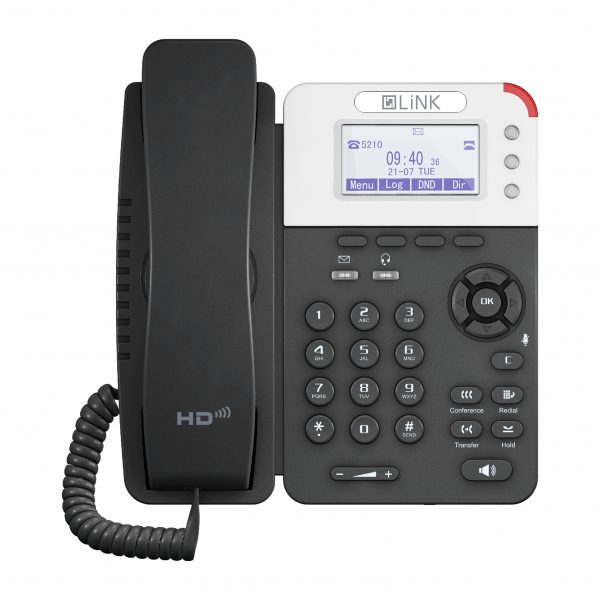

LiNK V208 VoIP
Description
Description
2.8” VOIP Phone with 3 SIP
- 2.8” 132*64px Graphic (black and white) LCD with backlight
- HD Voice: HD Codec, HD Speaker, HD Handset
- Multi-language: English, French, Russian, etc.
- Wall-mountable, integrated stand 42.5 degrees
- 3 SIP accounts and support three-way conference, SMS
- 2×10/100/1000Mbps PC&LAN, PoE, 1xRJ9Headset
- XML/LDA, Contact Search
- Auto-provision, HTTP/TFTP/FTP
- BroadSoft compatible
Specifications
Specifications
Phone Features
| 3 SIP accounts, MWI (Line1) Call hold, Call waiting, Call forward, Call return; Call transfer (blind/busy/ask) Caller ID display, Redial, Mute, DND Auto-answer, 3-way conferencing Speed dial, SMS, Voicemail Tone scheme, Volume control Direct IP call without SIP proxy Ring tone selection / Import / Delete Black list, Hand-free indicator. |
Call history: Dialled / Received / Missed (50 – entries); Soft keys programmable, Supports PC control Multi-Language: English, French, Russian, Italian, Polish, Portuguese, Portuguese-Brasil, Spanish, Turkish, Chinese |
Advanced Features
| 15 paperless programmable keys XML Phone Book search and input & output |
Enterprise phone book (800 entries) Personal Phonebook (300 entries) LDAP phone book |
IP PBX System Integration
| Busy lamp field (BLF), BLF list Bridged line appearance (BLA) DND & Forward synchronization Intercom, Paging, Music on hold |
Call pickup, Dial Plan, Call recording Anonymous call, Anonymous call rejection Network conference, Distinctive ring tone |
Compatible with the platforms
| AVAYA Alcatel-Lucent Asterisk BroadSoft Elastics Genesys/ |
Huawei Metaswitch NEC Yeastar ZTE 3CX |
Codes and Voice Features
| Wideband Codec: G.722 Narrowband codec: G.711μ/A, G.726, G.729AB,iLBC |
VAD, CNG, AEC, AGC, Full-duplex |
Security
| VLAN QoS (802.1pq), SRTP Transport Layer Security (TLS) Digest authentication using MD5/MD5-sess Secure configuration file via AES encryption |
Encryption for configuration file Phone lock for personal privacy protection Admin/User 2-level configuration mode, LLDP, CDP, L2TP VPN tunneling protocol – added |
Network Features
| SIP v1 (RFC2543), v2 (RFC3261) SIP connection: Proxy mode & Peering Points mode; SRTP voice encryption (RFC3711) Redundant server support NAT Traversal: STUN mode |
DTMF: In-Band, RFC2833, SIP Info, Auto HTTP Web Management IP Assignment: Static / DHCP / PPPoE Bridge / Router mode for PC port TFTP / DHCP/ PPPoEclient Telnet / HTTP / HTTPS server, DNS client, NAT / DHCP server |
Management
| Auto-provision via FTP / TFTP / HTTP / HTTPS | Configuration: Browser / Phone / Auto-provision Trace package and system log export |
Optional Features
| TR069, IPv6, HTTPS web management | 802.1x, OPEN VPN |
Physical Features
| 2.8” 132x64px graphic LCD; 34 keys including 2 programmable keys; 1xRJ9 headset port; 2xRJ45 10/100M Ethernet ports; Line keys with LED indicator: 3 LED for call and message waiting indication; Dual-colour (red or green) illuminated LEDs for line status information; |
42.5°bracket and wall-mountable Power adapter: AC 100~240V input and DC 5V/1A output; Power over Ethernet, IEEE 802.3af, class 0 Power consumption: 1.4-2.6W Net weight: Dimension: Operating humidity: 10~95% Storage temperature: up to 60°C |
Certifications
| CE / RoHS | FCC / ISO 9001 |
